Dokan Delivery Time

Dokan Multi Vendor Documentation

The new Dokan Delivery Time module will help the customers choose the time and date they want their product delivered. However, the admins and vendors can control these timings via settings. We are going to show you how to set up and use the Delivery Time module and you will then understand the whole thing.

How to Setup & Use the Dokan Delivery Time Module

First of all you need to do is enable the Delivery Time module from Dokan–> Modules.

this is a screenshot to enable delivery time module

Then you need to configure the settings. Navigate to Dokan–> Settings–> Delivery Time. There you will find all the settings to configure Delivery Time.

this is a screenshot of Dokan Delivery Time
  1. Allow vendor settings: If you check this box then the vendor will have the power to override the admin settings. Otherwise the settings provided by the admin will be global.
  2. Delivery Support: Admin can enable delivery support from the backend. But the vendor can override the settings from the vendor dashboard.
  3. Delivery date label: This label will show on checkout page for the customer.
  4. Delivery blocked buffer: How many days the vendor needs to deliver the product. If you write 0 then that means the vendor can deliver the product the same day of the order. It is like a preparation time for the vendors to deliver the product.
  5. Delivery box info: This info will show on checkout page delivery time box. %DAY% will be replaced by Delivery blocked buffer.
  6. Require Delivery Date and Time: Make choosing a delivery date and time mandatory for customers.
  7. Time slot: The length of each slot in minutes. Keep opening and closing time divisible by slot minutes. We strongly recommend you select the time slots that are divisible by opening and closing times like (30,60, 90, 120 minutes, etc).
  8. Order per slot: The number of orders you can take in each slot time. If you select 3 and the slot time is 30 that means you can take maximum of 3 orders in a 30-minute time frame.
  9. Delivery days: Choose the days and time the vendor can deliver.

Lastly, hit the Save Changes button to finish configuring the settings.

Vendor Setup

Now, if the admin allows the vendor to alter the settings then they can configure their own settings. If the vendor navigate to Vendor Dashboard–> Settings,

this is a screenshot of vendor settings

There he/she will find the Delivery Time settings. The Vendor settings are exactly like the Admin settings.

this is a screenshot of Vendor Delivery time settings for vendors

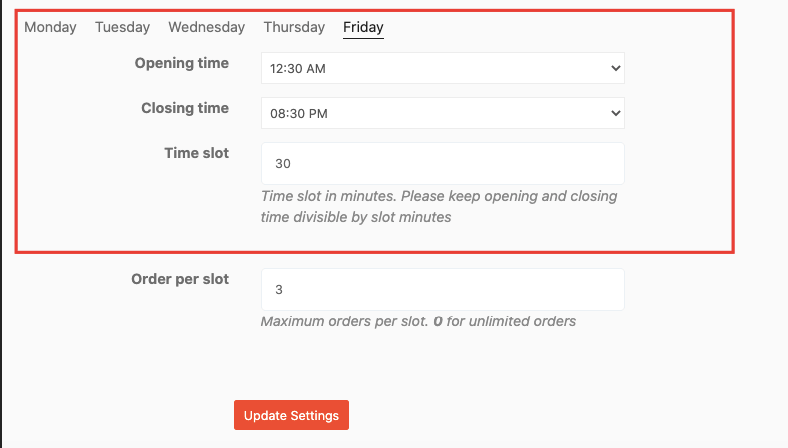

Vendors can select individual Opening times, Closing times, Time slots, and Order per slot for each delivery day. They need to click the Add Hours button to create multiple time slots.

Lastly, click Update Settings to finish.

How the Customer Will Use Delivery Time?

It is very easy for the customer. After purchasing a product and proceeding to checkout, on the right hand side of the checkout page they will see the option to select delivery time.

this is a screenshot of delivery time select
Delivery Time select for Shad Store and Harry Potter Store

Now, first the customer needs to select the delivery date. Now, only the available dates will appear plus it will take into account the Delivery blocked buffer time. From the available dates, the customer needs to choose one.

Note: Delivery Time module has Vendor Vacation support. So, if the vendor is on vacation then the vacation dates won’t show up either in the delivery date select option.

this is a screenshot of delivery date select

Then, the customer needs to select the time slot as well,

this is a screenshot of time slot

After confirming the order, they can visit My Account–> Orders and see the details of their delivery time.

this is a screenshot of Delivery details in order

Delivery Time Details-Vendors

There is option in the Vendor Dashboard, which will enable the vendors to see the dates and number of deliveries on that particular date. Just select the Delivery Time option and they can see all the details.

this is a screenshot of dashboard delivery time

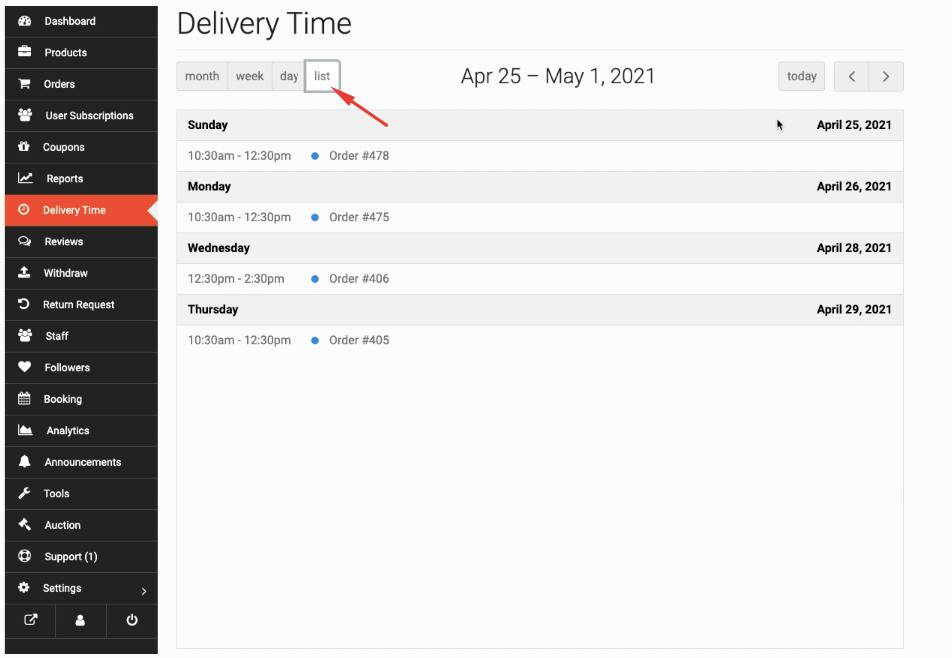

They can also filter the orders by month, week, day. They can see the list view as well,

this is a screenshot of list view

And when they click on an order they can see the order details as well.

this is a screenshot of order details

Vendors can update the Delivery Date and time slot if they want. Also, they can change the delivery support as well. If the customer chooses Store pickup, the vendor can change it to Delivery.

After updating, it will be added to the Order note.

Delivery Time Details-Admin

Admin can also view and update the delivery time details as well. Navigate to WooCommerce–> Orders. And click on an order to see details.

this is a screenshot of admin delivery time

In the order details, they will find a meta box with the delivery time and date. They can change the Delivery Support as well.

this is a screenshot of Metabox

They can also update the Delivery Date and time slot. After updating, it will be added to the Order note.

this is a screenshot of order notes

That is how users can easily setup and use Dokan Delivery Time module and take their marketplace to another level.

Note: This module will not support Downloadable or virtual products.

Store Pickup Location

Instead of home delivery, customers can now pickup their order from the store using the Store Location feature. So, if the customer wants they can pickup their order from the nearby location.

Vendor Settings

To enable the store pickup feature, the vendors need to enable the Store Pickup option or the Home Delivery option or the vendor can enable both.

this is a screenshot of enable store pickup

Setup Store Location

In order for the customers to pickup the order, vendors need to set up their store location. Visit vendor dashboard–> Settings. There the vendors can set up their store location.

this is a screenshot of set up location

And, if the vendors want they can add multiple locations if they have different branches in the country or worldwide. They need to enable the “Store has multiple locations” option.

this is a screenshot of multiple locations

Click on Add New Location button,

this is a screenshot of add new location button

Give the location a name (that will appear at checkout), address. Then click on the Save Location button.

this is a screenshot of new location

You will see that the second location has been added. The first location is the default location of your store.

this is a screenshot of locations

Address Verification

Vendors can verify their default address using the Vendor verification feature. Just go to the Verification option from the vendor dashboard. There click on the Start Verification button.

this is a screenshot of start verification

Add your address and click on the Submit button.

this is a screenshot of submit address

Admin needs to approve the address from Dokan–> Verifications.

this is a screenshot of approve address

After approval, vendors will be able to see that their address is verified,

this is a screenshot of verified address

Then vendors will not be able to edit or delete the default store location,

this is a screenshot of can't change address

Note: If the vendor wants to change the default address again, then the admin has to approve the address again and the verification status will be deleted.

Checkout Process

Suppose a customer has bought products from two different vendors. On the checkout page, he/she will get two options (if the vendors choose both home delivery and store pick-up options). When they choose the store pickup option,

this is a screenshot of pickup

Now, the customers need to choose pickup date, time slot and pickup location.

this is a screenshot of choose location

When they choose the location, the address will be shown below the location.

this is a screenshot of address shown

After placing the order, two sub-orders will be created.

this is a screenshot of sub-orders

One for Store Pickup,

this is a screenshot of store pickup

And one for home delivery.

this is a screenshot of home delivery

Vendor Visualization

We have added some enhancements to the Delivery calendar. Now vendors can see both Home Delivery and Store Pickup orders in the calendar.

this is a screenshot of calendar

Vendors can filter between Home delivery and Store Pickup,

this is a screenshot of Filter

Vendors will see the filtered results,

this is a screenshot of filtered results

And if the vendors click on the orders, they will see the details of the order.

this is a screenshot of Order-Details

This is how the store pickup feature works.
